Forms give you the ability to adapt Kantata OX to your organization's processes and requirements. You can create forms for creating projects to collect only the information relevant and essential to your organization.
Overview
Forms give you the ability to adapt Kantata OX to your organization's processes and requirements. You can use Forms to create projects, update projects, or display project information, including custom fields.
Using Forms to Create Projects
When used to create projects, Forms help you collect only the information that is relevant and essential to your organization and teams. You can add your own help tips to Forms to provide detailed guidance on how to fill out specific fields, improving the accuracy and quality of data. You can also add Custom Fields to Forms, ensuring that the fields that are necessary for your business workflows are present from the start of the project.
The default Kantata project create page can be replaced with your own form—allowing you to adapt Kantata to better match your organization’s needs.
Using Forms to Display and Update Project Information
You can streamline project updates by leveraging forms in a project workspace. Make team processes more efficient by displaying and updating project information—including custom fields—in the order that works best for your team.
See Adding a Form to a New Project and Adding a Form to an Existing Project.

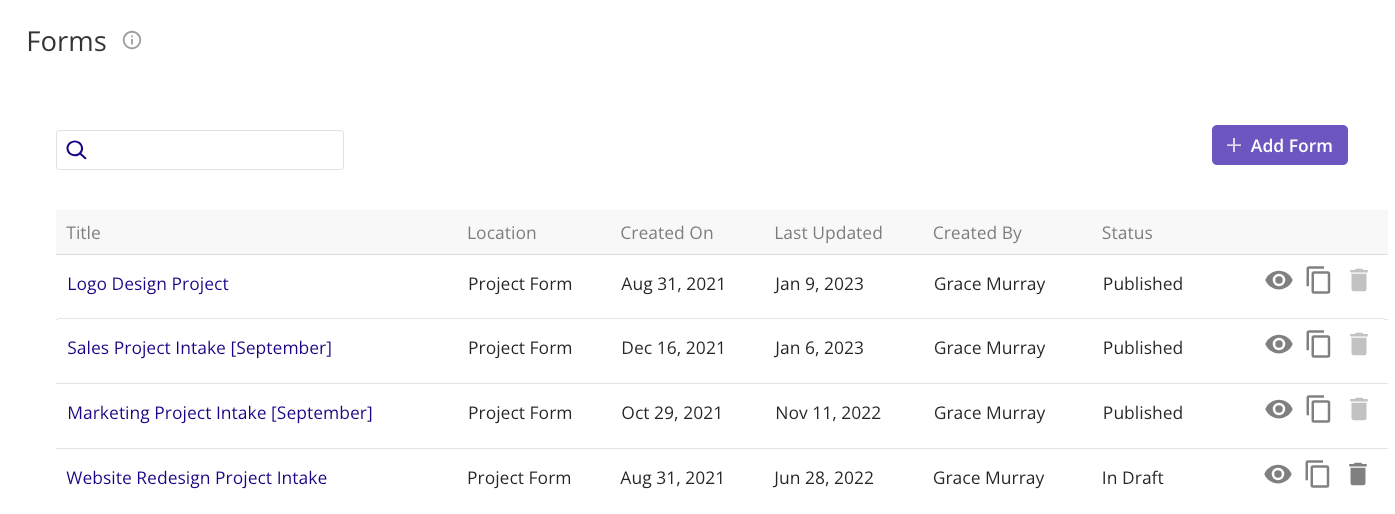

Forms Page
The Forms page lists all of your forms. If you haven't created any forms yet, the list will appear empty.
Within the Forms page, you can:
- Click Add Form to create a new form.
- Edit a form by clicking the [Form Title].
- Find a form using the Search field.
- Click the Preview icon to view a form.
- Click the Clone icon to clone a form. All the form fields and configurations will be copied to the new form. The new form will be saved as a draft.
- Click the Delete icon to delete a form. Note that a form must be saved as a draft before you can delete it.
NOTE
Only Account Administrators can create forms. Published forms will be visible to all account members, but only Project Creators and above can create projects using forms.
How to Create a Form
- Hover over Settings from the left navigation, then click Forms.
- Click Add Form.
- Select the Form Location:
- Project Form
- Enter the form Title.
This title is what appears under the Forms section in the left navigation after completion. If the form is added to a project as a project tab, the form title will also appear as a tab name in the project.Note: The form title has a 255 character limit, and changes made to the Title and Description appear on the canvas immediately. - Select Configure Form. The Form Builder opens.
- or -
Select Save & Add Another to save the current form and create any other desired additional forms. Once you have added all of your forms, select Configure Form within the page of your final form. The Form Builder opens.
Form Builder
The Form Builder is where you can manage and configure forms and their details.
The Form Builder is divided into two sections, with the Details, Fields, and Rules tabs on the left and the Form Builder Canvas on the right:
- The Details tab provides general information about your form. You can edit the Title, Description, and Default Status of your form from this tab.
- The Fields tab lists all the fields you can add and configure to the form. If you're on the Enterprise or Premier plan, custom fields are also included.
- The Rules tab allows you to edit or remove rules for the form.
- The Form Builder Canvas is an editable area where you can add, configure, and rearrange fields.
Go to the Form Builder Keyboard Shortcuts section for details on more Form Builder tools.
How to Use the Form Builder
You can access the Form Builder from multiple locations within Kantata OX:
- After creating a Form, the Form Builder opens.
- Go to Projects > Forms > [Form Name]. Within the Form page, select Edit Form.
- Go to Settings > Forms. The Forms page opens. Select the [Form Name] to open the Form Builder.
- In a project workspace, select an editable tab. Within the editable tab, select Edit Form to open the Form Builder.
Add or Edit Form Details
- Within the Form Builder, go to the Details tab.
-
The Details tab includes the following information:
- Status—Whether the form is published or a draft. Published forms appear in the Forms section in the left-hand navbar of the respective feature.
- Location—The area within the Kantata OX user interface where the form is displayed.
- Title
- Description—A field that appears directly underneath the Form title. You can add an external reference to this description by including a hyperlink.
- Set as default—When you set a create project form as the default form, the form will open when you click the Add New Project List. The form replaces the default Kantata OX form for new projects. This allows you to tailor the project creation process to match your business workflows. project button in the left-hand navbar or the Add Project button in the ”)
- Enter or edit information within the fields as desired.
- Once you finish adding or editing fields, select one of the save options:
- Save Draft—Saves changes and saves the form as a draft. The form will not appear in the left-hand navbar.
- Publish—Saves changes and activates the form. The form will appear in the Forms section in the left-hand navbar of the respective feature.
Arrange or Remove Fields from the Fields Tab
- Within Kantata OX, go to the Form Builder.
- Within the Form Builder Canvas, located on the right side of the page, you can perform the following actions:
- To move a field, hover over the field then use the move icon that appears to drag the field to another area on the canvas.
- To remove a field from the form, click on the field in the canvas, then click Delete field in the configuration modal.
- To add a field to a form, drag a field from the Fields tab and drop it in a highlighted area in the canvas.
- Once a field is on the form, you can click the field to configure it.
-or-
If you want to save your canvas progress before configuring fields, select one of the save options:
- Save Draft—Saves changes and saves the form as a draft. The form will not appear in the left-hand navbar.
- Publish—Saves changes and activates the form. The form will appear in the Forms section in the left-hand navigation of the respective feature.
Configure Fields in the Form Builder Canvas
- Within the Form Builder, go to the Fields tab.
Note: Depending on your permissions, you may see varying categories of fields within the library. The Required section contains all the fields that are required at a minimum to submit the form. All required fields should be added to the form before publishing it.
- To configure a field after adding it, click on the field in the Form Builder Canvas.
- You can set the following options:
- Label—The label that will appear on the page when the form is used.
- Placeholder—You can use the placeholder to provide a brief description or hint for the field.
- Default Value—The value that pre-populates in the field when the form is opened. If the field has a commonly used value, enter it as the default value.
- Tooltip—Use the tooltip to provide detailed guidance on how to complete the field. The tooltip appears as a question mark icon beside the field label. Hovering over the tooltip displays the tooltip text.
- Required—If checked, the user must enter a value in the field in order to submit the form. Use this setting to ensure people fill out all fields that are essential for your organization's processes.
- Read Only—If checked, the field will appear on the form but users won't be able to enter or select a value. This setting can be used in combination with a default value: If there’s information that should always be submitted and should not be changed by users, you can add a default value and mark the field as read-only.
- Hidden—If checked, the field will be hidden on the form. This setting can be used in combination with a default value and the read-only option: If there’s information that should always be submitted and not changed by users, you can hide the field to reduce the number of fields that appear on the form.
- Add a rule—You can configure a rule for the field to change the display and behavior of other fields based on the values entered or selected in the field.
- Click the Close icon when you are finished configuring a rule. ”)
- Once you finish adding and configuring fields, select one of the save options:
- Save Draft—Saves changes and saves the form as a draft. The form will not appear in the left-hand navbar.
- Publish—Saves changes and activates the form. The form will appear in the Forms section in the left-hand navbar of the respective feature.
Configure Field Rules
In the Rules tab, you can add, edit, and delete field rules that change the display and behavior of fields based on the values entered in specific fields. See the Custom Forms: Field Rules article for more information.
Form Builder Keyboard Shortcuts
Form Builder Keyboard Shortcuts
The following keyboard shortcuts are available when in the Form Builder.
Navigating the Canvas
• Tab to select a field, select its move
icon, or navigate through its configuration options.• Space to close configuration options, when the close icon is selected.
• Tab Tab Tab Space to navigate across fields.
The first Tab selects a field, the second Tab selects the move icon, the third Tab opens configuration options, and Space closes configuration options.
Editing a Field
When a field is selected:
• Enter / Return to open the field configuration options.
• Backspace / Delete to remove the field from the canvas.
Moving a Field
Once a field's move
icon is selected:• Space to enter move mode. Highlighted areas will appear in the canvas where you can place the field. While in move mode, the field you're moving will not be visible in the canvas.
While in move mode:
• ↑ ↓ ← → to navigate through the locations you can move the field to.
• Enter / Return to place the field in a highlighted area.
• Esc to remove the field and exit move mode.
How to Use Forms to Display and Update Project Information
Forms can be leveraged to display and update project information, including custom fields. An Account Administrator is required to create and publish the form, and a Project Administrator is required to add the form(s) to the project workspace.
Project Administrators can add forms to a project workspace in two ways:
- When creating a new project using a form
- In Project Settings (for existing projects)
Creating a Form
Before a Project Administrator can add Forms to projects, an Account Administrator must create them.
- If you haven't already, create a form. Forms can be used to create new projects and/or update existing projects.
- If you want to allow project creators to choose which form(s) to add to the project workspace while creating a new project with this form, add the Project Tabs field to the form.
Note: Alternatively, you can edit an existing published form and add the Project Tabs field to the form. - Publish the form. Project Administrators can now set the form as a project tab for new and existing projects.
Adding a Form to a New Project
Once a form has been created, a Project Administrator can add the form during project creation.
- In the left navigation, select Projects, then select a form.
- Fill out the project information.
- In the Project Tabs field, select the form(s) you would like to be displayed as a tab in the project.

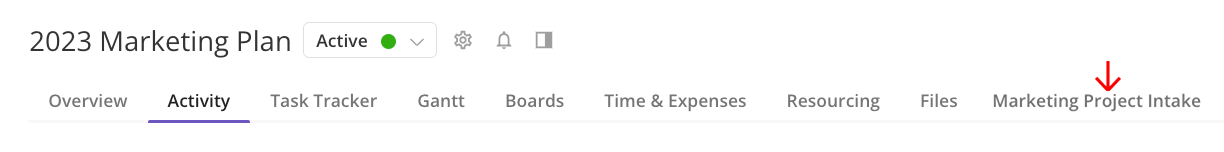

- Click Save. The project is created and the form(s) you selected appears as a tab.
Adding a Form to an Existing Project
Once a form has been created, a Project Administrator can add the form via the Project Settings.
- In the project, open Settings from the Actions
drop-down menu located to the right of the project name. - In the Additional Tabs section, select each form you would like to be displayed as a tab in the project.
- Click Update Project. In the project, each form you selected now appears as a new tab, ordered alphabetically.
